What are the main functions of the lead screw welding rotator?

A lead screw welding rotator is a specialized piece of equipment used in welding processes to support and rotate cylindrical workpieces, such as pipes, tanks, or pressure vessels, during welding. The use of a lead screw mechanism allows for precise adjustment of the position and alignment of the workpiece.

Lead screw welding rotator functions

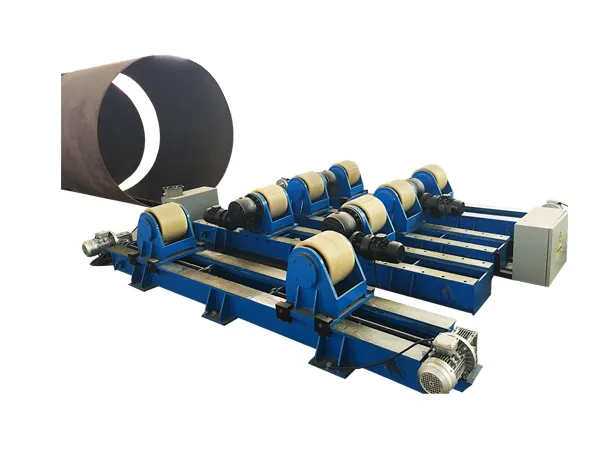

lead screw welding rotator

1. Support and Stability of Workpieces:

The primary function of a lead screw welding rotator is to provide stable support for cylindrical workpieces during welding. The rotator's rollers cradle the workpiece, preventing it from shifting or vibrating, which ensures a consistent weld.

2. Controlled Rotation:

The rotator allows for the controlled rotation of the workpiece. This rotation can be adjusted to the desired speed, which is crucial for achieving uniform welding around the circumference of the workpiece. The rotation speed can be fine-tuned depending on the welding requirements.

3. Precise Positioning and Alignment:

The lead screw mechanism enables precise positioning and alignment of the workpiece. By adjusting the lead screw, operators can move the workpiece horizontally along the axis, ensuring that it is correctly aligned for welding. This is especially important for maintaining the correct distance between the welding torch and the workpiece.

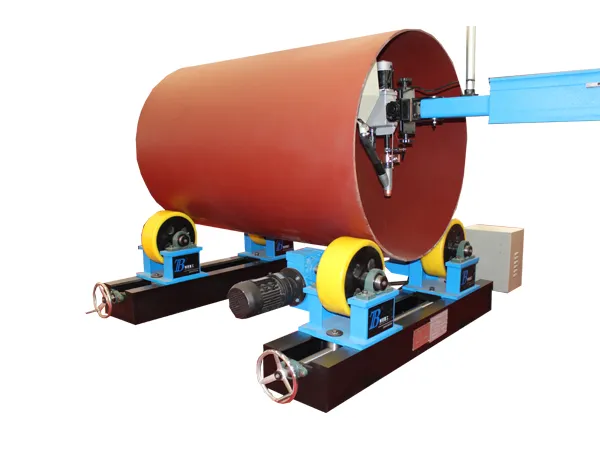

lead screw welding rotator

4. Adjustable Roller Distance:

The lead screw welding rotator typically allows for the adjustment of the roller distance to accommodate workpieces of various diameters. The lead screw mechanism makes it easy to change the spacing between rollers to fit the specific size of the cylindrical object being welded.

5. Facilitating Continuous Welding:

By rotating the workpiece at a consistent speed, the rotator allows for continuous welding around the entire circumference without stopping. This continuous motion helps to produce a more uniform and stronger weld.

6. Reducing Operator Fatigue:

The rotator reduces the need for manual handling and repositioning of the workpiece, which decreases operator fatigue and increases safety. Operators can focus more on the welding process rather than on physically managing the workpiece.

7. Improving Weld Quality:

Consistent rotation and stable support provided by the rotator result in higher weld quality. The even rotation helps in achieving uniform penetration and consistent bead formation, reducing the likelihood of defects such as incomplete fusion or porosity.

8. Handling Heavy and Large Workpieces:

Lead screw welding rotators are designed to handle heavy and large cylindrical workpieces that would be difficult or impossible to rotate manually. The mechanical advantage provided by the lead screw allows for the easy movement and rotation of such workpieces.

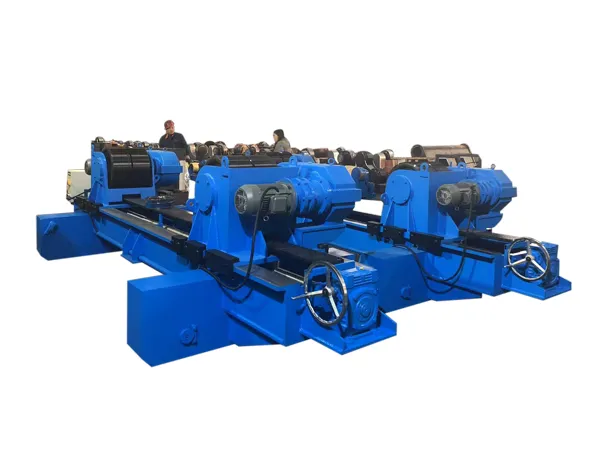

lead screw welding rotator

9. Reducing Welding Time:

By automating the rotation and positioning of the workpiece, the rotator can significantly reduce the overall welding time. This efficiency is particularly beneficial in industrial settings where time is a critical factor.

10. Customization for Specific Applications:

Lead screw welding rotators can often be customized to meet the specific needs of different welding applications, including varying roller types, load capacities, and rotation speeds.

These functions make the lead screw welding rotator an essential tool in the welding industry, particularly for applications involving large or heavy cylindrical objects.
