What are the components of the welding positioner?

A welding positioner is a device used to hold and rotate a workpiece to the optimal position for welding. It allows the welder to work at a consistent angle, improving weld quality, reducing fatigue, and increasing productivity. A welding positioner consists of several key components designed to hold, rotate, and tilt workpieces to facilitate welding from optimal angles.

Welding positioner composition

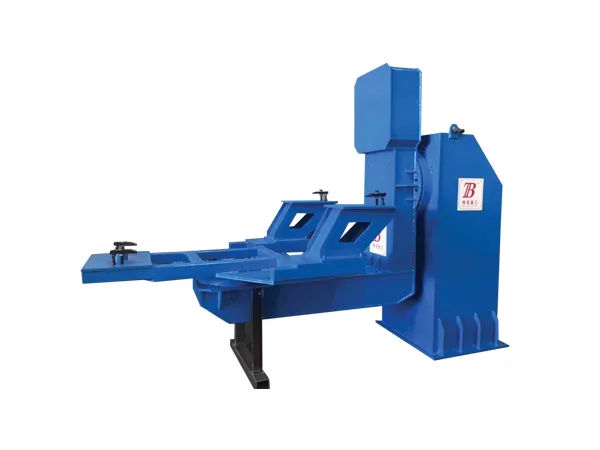

welding positioner

1. Rotating Table/Chuck

Rotating Table: The flat surface or platform where the workpiece is mounted. It rotates to allow access to different areas of the workpiece without manually repositioning it.

Chuck: A clamping device on the rotating table that securely holds the workpiece in place during rotation. Chucks can be three-jaw, four-jaw, or specially designed for specific workpiece shapes.

2. Tilt Mechanism

Tilting Table: Allows the rotating table or chuck to be tilted at various angles, providing the flexibility to position the workpiece optimally for welding.

Tilt Motor/Gears: Motor and gears control the tilting action, allowing precise adjustments to the tilt angle.

3. Control System

Control Panel: The interface used to control the rotation speed, tilt angle, and other positioner functions. It may include buttons, switches, or a touchscreen.

Foot Pedals/Remote Control: Optional control devices that allow the welder to adjust the positioner hands-free or from a distance.

4. Base Frame

Base/Frame: The sturdy structure that supports the positioner and ensures stability. It must be strong enough to bear the weight of the workpiece and resist vibration during operation.

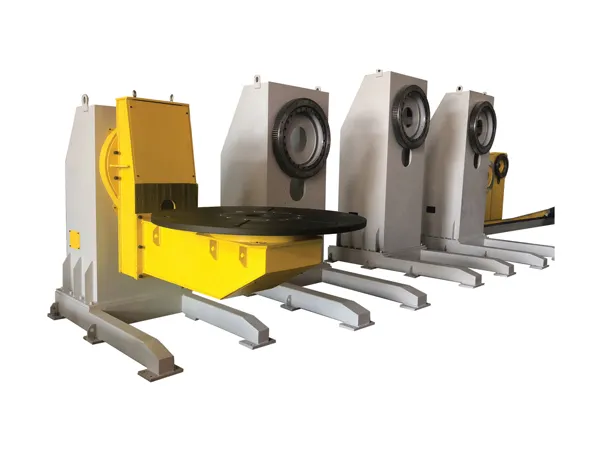

welding positioner

5. Fixture Clamps

Clamps/Fixtures: Devices used to hold the workpiece securely to the rotating table or chuck. These can be adjustable to accommodate different shapes and sizes of workpieces.

6. Drive System

Rotation Motor: Powers the rotation of the table or chuck, allowing continuous or indexed rotation of the workpiece.

Gearbox: Transmits the power from the motor to the rotating table, often providing different speed settings.

Bearings: Support the rotating parts and ensure smooth, frictionless movement.

7. Tailstock (Optional)

Contraponto: Utilizado em conjunto com uma cabeça, o contraponto suporta a extremidade oposta de peças longas, como tubos ou eixos. Pode ser ajustável para acomodar diferentes comprimentos.


8. Headstock (Optional)

Headstock: Provides the primary rotating force and supports one end of the workpiece. It usually contains the drive motor and controls for rotation.

welding positioner

9. Safety Features

Emergency Stop Button: A critical safety feature that allows immediate shutdown of the positioner in case of an emergency.

Overload Protection: Prevents the positioner from operating beyond its safe load capacity.

Limit Switches: Automatically stop rotation or tilting when the positioner reaches its maximum allowable angle or position.

10. Auxiliary Attachments (Optional)

Boom Arms/Support Arms: Additional supports or attachments that can be used to hold specific types of workpieces or to assist in positioning.

Counterweights: Used to balance the positioner when working with off-center or irregularly shaped workpieces.

These components work together to provide precise control over the positioning of the workpiece, enhancing the quality and efficiency of the welding process.
