Welding Rotator Operating Instructions

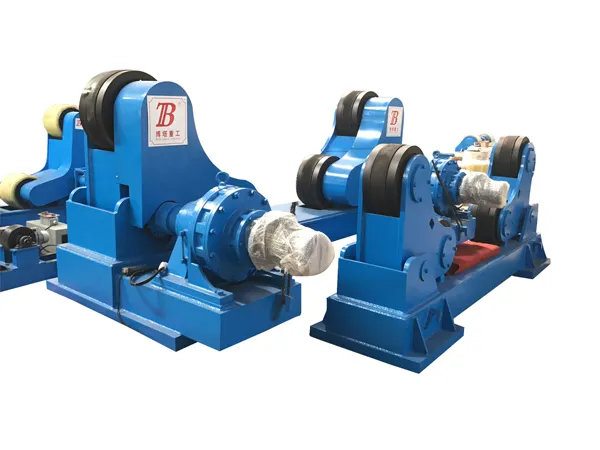

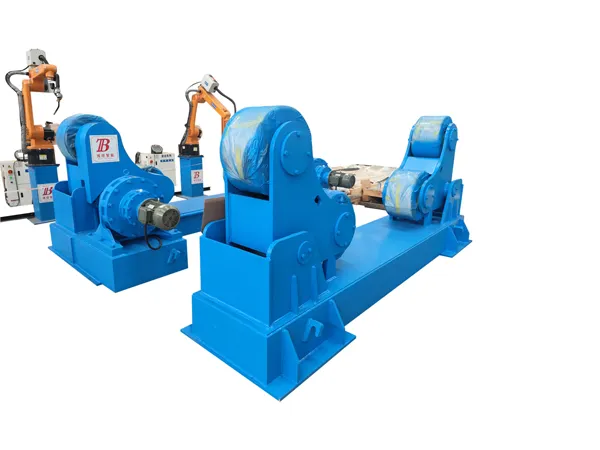

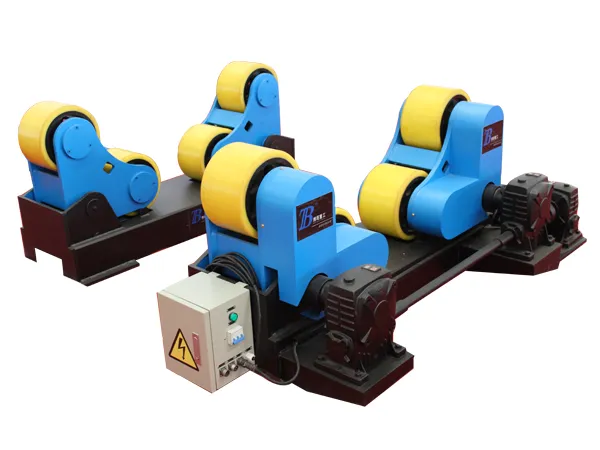

Welding rotators are used in various industries to facilitate the welding of cylindrical or round objects, such as pipes, tanks, and other similar structures. They provide support and rotate the workpiece, allowing the welder to work on a stationary weld head, ensuring uniform and consistent welds.

Welding Rotator Operating Instructions

1. Safety Precautions

Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, welding helmet, gloves, and protective clothing.

Work Area: Ensure the work area is clean, well-lit, and free from flammable materials.

Training: Only trained and authorized personnel should operate the welding rotator.

Inspection: Regularly inspect the rotator for any signs of wear or damage before use.

2. Pre-Operation Checks

Machine Condition: Inspect the welding rotator for any visible damage or wear. Check for loose bolts or connections.

Electrical Connections: Ensure all electrical connections are secure and the power supply matches the machine’s specifications.

Control Panel: Verify that all controls are functioning correctly and emergency stop buttons are operational.

Rollers and Bed: Check that the rollers are free from debris and are properly aligned. Ensure the bed is clean and free from obstructions.

3. Setup

Positioning the Workpiece:

Place the workpiece centrally on the rollers.

Adjust the distance between the rollers to fit the diameter of the workpiece.

Ensure the workpiece is balanced and stable on the rotator.

Aligning the Rotator: Align the rotator with the welding equipment to ensure smooth and consistent welding.

Securing the Workpiece: Depending on the weight and shape of the workpiece, secure it with straps or clamps if necessary.

4. Operating the Welding Rotator

Power On: Turn on the power supply to the welding rotator.

Speed Adjustment: Adjust the rotation speed according to the welding requirements using the control panel.

Start Rotation: Begin rotating the workpiece at a low speed to check for balance and alignment. Gradually increase the speed as needed.

Monitor Operation: Continuously monitor the operation for any signs of instability or abnormal noise. Make adjustments as necessary.

Emergency Stop: Be familiar with the location and operation of the emergency stop button. Use it immediately if any unsafe condition arises.

5. Welding Process

Preparation: Ensure the welding equipment is set up correctly and the welding parameters are adjusted according to the material and specifications.

Welding: Begin the welding process, maintaining a consistent speed and alignment. Use appropriate welding techniques for the material and joint type.

Cooling: Allow the workpiece to cool gradually on the rotator after welding to prevent warping or deformation.

6. Post-Operation Procedures

Power Off: Turn off the power supply to the welding rotator.

Inspection: Inspect the workpiece for any defects or areas requiring rework.

Cleaning: Clean the welding rotator, removing any debris or slag from the rollers and bed.

Maintenance: Perform routine maintenance checks, such as lubricating moving parts and checking electrical connections.

7. Maintenance

Regular Checks: Perform regular inspections and maintenance as per the manufacturer’s guidelines.

Lubrication: Lubricate all moving parts regularly to ensure smooth operation.

Replacement of Worn Parts: Replace any worn or damaged parts immediately to avoid operational hazards.

Record Keeping: Maintain a log of all inspections, maintenance activities, and any repairs carried out.

8. Troubleshooting

Rotator Not Starting: Check the power supply, fuses, and circuit breakers. Verify that all connections are secure.

Irregular Rotation: Inspect the rollers for debris or damage. Ensure the workpiece is properly balanced.

Abnormal Noise: Identify the source of the noise. Check for loose parts, worn bearings, or misalignment.

Inconsistent Speed: Check the speed control settings and inspect the control panel for faults.

9. Emergency Procedures

Immediate Stop: Use the emergency stop button to halt the operation instantly in case of any emergency.

Fire Safety: Have a fire extinguisher readily available and know the location of emergency exits.

First Aid: Be familiar with the location of first aid kits and emergency contact numbers.

Conclusion

Proper operation and maintenance of a welding rotator are crucial for ensuring safety and achieving high-quality welding results. Always adhere to the manufacturer's instructions and safety guidelines. Regular maintenance and inspections will prolong the life of the equipment and prevent accidents.
